Requirements

This section outlines the functional, non-functional, and implementation requirements for
Flatmates.

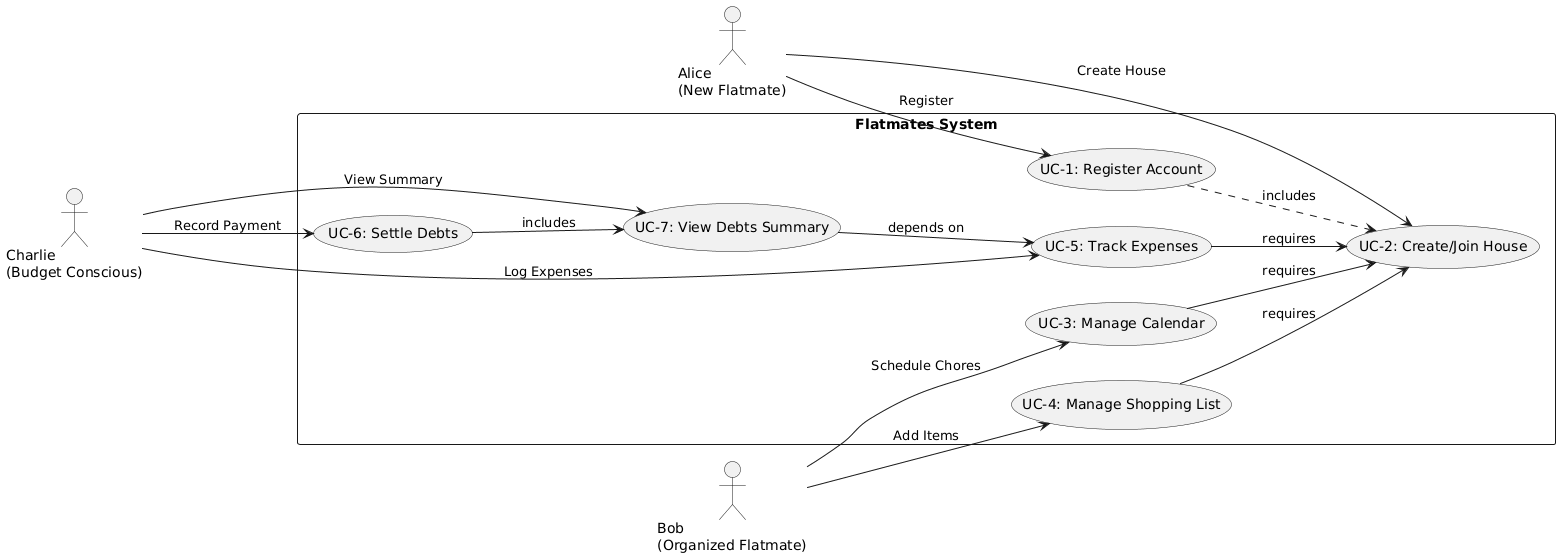

Diagram Overview

1. User Stories

1.1 Persona: Alice

New resident joining an existing shared household; unfamiliar with the platform but tech-savvy;
wants quick onboarding.

As a new flatmate, I want to create a user account so that I can access the app features.
As a new user, I want to create a new house profile so that I can invite my roommates to
join.
As a user joining an existing household, I want to enter a unique “join code” so that I can
be added to the correct house group.

1.2 Persona: Bob

Detail-oriented resident who takes initiative on household coordination; actively manages
shared responsibilities; prefers structured workflows.

As a flatmate, I want to add items to a shared shopping list so that we don’t forget
essentials.
As a flatmate, I want to mark items as “purchased” on the shopping list so that we avoid
buying duplicates.
As a flatmate, I want to schedule cleaning shifts on a shared calendar so that everyone
knows their responsibilities.

1.3 Persona: Charlie

Financially aware resident who carefully tracks shared expenses; wants transparency in
bill-splitting; motivated by fair settlements.

As a flatmate, I want to log a shared expense (e.g., internet bill) so that the cost is
recorded.
As a flatmate, I want to see a calculation of “who owes whom” so that we can settle
debts easily without manual math.
As a flatmate, I want to record a reimbursement payment so that the system updates our
debt balances.

2. Functional Requirements

Functional requirements describe what the system should do to support user activities. They are
derived directly from user stories.

2.1 House Management

Requirement: Users are able to login and manage their household association.

Acceptance Criteria:

After registration, users can choose to “Create a House” (generating a unique join code)
or “Join a House” (inputting an existing code).
Users can reset the house data (clearing all events/expenses) or delete the house
entirely if needed.

2.2 Shared Calendar

Requirement: The system must provide a collaborative calendar for scheduling events and
chores.

Acceptance Criteria:

Users can view a weekly and monthly calendar interface, with the added functionality of
being able to display all the events in a list.
Users can create events with a title, date, start/end time, and description.
Users can assign specific flatmates to an event (e.g., “Trash Duty” assigned to “Alice”).
Events must be visible to all members of the house immediately after creation.

2.3 Shopping List

Requirement: The system must allow real-time collaboration on a household shopping list.

Acceptance Criteria:

Users can add new items to the list, specifying the item name and quantity.
The list displays who added each item.
Users can toggle an item’s status to “Purchased” via a checkbox.

2.4 Expense Tracker and Debt Settlement

Requirement: The system must track shared expenses and algorithmically calculate debts.

Acceptance Criteria:

Users can log an expense with a title, amount, and the payer’s identity.
Users can specify which flatmates are involved in the split.
The system must calculate net balances using a debt simplification algorithm (minimizing
the number of transactions required to settle up).
Users can view a “Debts” summary showing exactly who owes whom and how much.
Users can record “Reimbursements” to pay off debts, which updates the net balance to
zero.

3. Non-Functional Requirements

Non-functional requirements specify system qualities beyond behavioral features, including
performance, reliability, security, and usability.

3.1 Usability

Requirement: The application must be intuitive and accessible for daily household use.

Acceptance Criteria:

The interface must be responsive, adapting to both desktop and mobile screens for
on-the-go access.
Key actions (adding an item, logging an expense) must be achievable within at least 5
clicks from the homepage.
Visual feedback (e.g., success messages) must be provided for all data entry actions.

3.2 Performance

Requirement: The system must handle data synchronization efficiently.

Acceptance Criteria:

API responses for fetching lists or calendar data should occur within 2 seconds under
normal network conditions.
The debt simplification algorithm must execute fast even with dozens of recorded
expenses.

3.3 Reliability and Data Integrity

Requirement: The system must ensure data consistency across the household.

Acceptance Criteria:

All data (expenses, events, list items) is persistently stored in a relational database
(SQLite).
Concurrent updates (e.g., two users adding items simultaneously) must be handled
without data loss.

3.4 Security

Requirement: User data and house access must be protected.

Acceptance Criteria:

House data is isolated; users cannot access data from a house they do not belong to.
Passwords are securely hashed by combining a random salt with the password and
applying the SHA-256 cryptographic hash function, ensuring each password hash is
unique and resistant to common attacks like rainbow table lookups.

4. Implementation Requirements

Implementation requirements constrain the system realization process and are justified by
technical, economic, or organizational factors.

4.1 Technology Stack

Requirement: The application must be built using the specified modern Python stack.

Acceptance Criteria:

Backend: FastAPI service with Uvicorn.
Frontend: Streamlit for dynamic UI rendering.
Database: SQLite for lightweight, file-based persistence.
Charts: Altair for rendering expense graphs.

4.2 Development Standards

Requirement: The codebase must follow clean architecture principles.

Acceptance Criteria:

Separation of concerns between Backend (API routers, DB logic) and Frontend
(Streamlit pages).
Dependencies managed via requirements.txt.
Comprehensive unit testing using pytest for backend, frontend and database
operations.

4.3 Deployment

Requirement: The application must be deployable to cloud platforms.

Acceptance Criteria:

Backend capable of running on PAAS providers (e.g., Railway).
Frontend capable of running on Streamlit Community Cloud.

5. Glossary

Join Code: A unique alphanumeric number generated when a house is created, used by
other users to join that specific household.
Reimbursement: A direct payment recorded between two flatmates to settle a debt,
distinct from a shared expense.
Debt Simplification: An algorithm that reduces a complex web of settlements (e.g., A
owes B, B owes C) into the simplest set of direct transfers (e.g., A pays C).
