Design

This chapter explains the strategies and design decisions used to meet the requirements
identified in the analysis.

1. Architecture

The Flatmates application follows a client-server architecture, specifically adopting a Layered
Architecture pattern to separate different concerns. This design ensures modularity, scalability,
and ease of maintenance.

Rationale:

  • Layered Architecture provides clear separation of concerns, enabling independent
    development and testing of presentation, business logic, and data layers.
  • Supports the natural hierarchical structure of household management features (UI →
    business logic → data storage).
  • Facilitates future extensions (e.g., mobile app clients, alternative frontends) via shared
    backend API.

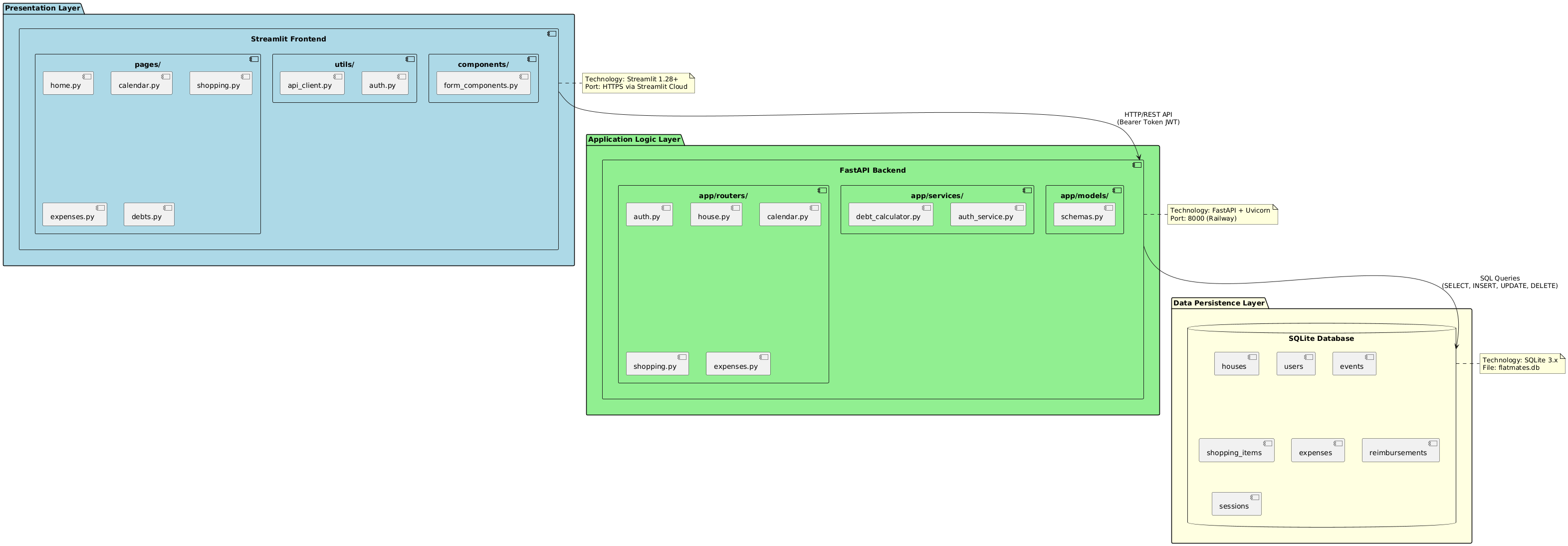

layers

The system is composed of three main layers:

1.1 Presentation Layer (Frontend)

  • Technology: Streamlit

  • Responsibility: Renders the user interface and handles user interactions. It
    communicates with the backend via API calls. It is responsible for displaying the
    dashboard, calendar, shopping lists, and expense reports.

  • Key Components:
    ├── frontend/                  # Streamlit frontend
│   ├── app.py                 # Frontend entry point
│   ├── utils.py               # Helpers and UI utilities
│   └── pages/                 # Multi-page app screens
│       ├── 0_Settings.py
│       ├── 1_Calendar.py
│       ├── 2_Shopping_List.py
│       └── 3_Expenses.py

1.2 Application Logic Layer (Backend)

  • Technology: FastAPI with Uvicorn server

  • Responsibility: Exposes API endpoints. It processes incoming requests, enforces
    business rules (e.g., debt calculation algorithms), validates data using Pydantic models,
    and orchestrates interactions with the database.

  • Key Components
    ├── backend/ # FastAPI backend
│ ├── main.py # Backend entry point
│ ├── models.py # Pydantic models / schemas
│ ├── db/
│ │ ├── init.py
│ │ └── database.py # Database configuration/connection
│ └── routers/ # API routes
│ ├── calendar.py
│ ├── expenses.py
│ ├── house.py
│ └── shopping.py
  • Interactions:
  • Receives HTTP requests from Streamlit frontend
  • Queries SQLite database via SQL
  • Returns JSON responses to frontend

1.3 Data Persistence Layer

  • Technology: SQLite (via Python sqlite3)
  • Responsibility: Stores all persistent data including user profiles, house configurations,
    events, expenses, shopping items, and reimbursements. Ensures data integrity and
    isolates data by house.

Key Entities:

  • houses - Household profiles with name and unique join codes
  • users - User accounts with salted SHA-256 password hashes and house associations
  • events - Calendar events and chores with assignee information
  • shopping_items - Shopping list items with quantity and purchase status
  • expenses - Shared expense records with payer and involved people (stored as JSON)
  • reimbursements - Direct payment records between users
  • sessions - Authentication tokens with timestamps

Interactions:

  • Receives method calls from FastAPI backend through the Database class
  • Enforces schema constraints (foreign keys, unique constraints) and data consistency
  • Returns typed domain objects (User, Event, Expense, etc.) to backend

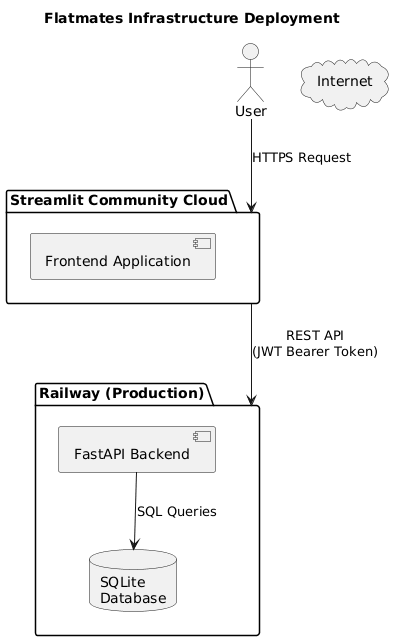

2. Infrastructure

For the current scope, Flatmates operates as a monolithic application with all components
co-located:

Component Technology Deployment Purpose
Frontend Server Streamlit Streamlit Community Cloud User-facing interface, accessible via browser
API Server FastAPI + Uvicorn Railway Backend business logic and API endpoints
Database SQLite Railway Persistent data storage

infrastructure

3. Modelling

The Flatmates application follows a layered architecture with a pragmatic approach to domain
modeling. The system is organized around core domain entities with direct database
persistence.

The application is structured around the following core entities (defined in
backend/models.py):

3.1 Household Management

House (HouseSettings)

  • id - Unique identifier
  • name - Household name
  • flatmates - List of usernames (derived from users table)
  • join_code - Unique numeric code for invitations

User

  • id - Unique identifier
  • username - Unique username (globally unique, not per-house)
  • house_id - Reference to associated house
  • Password stored as salted SHA-256 hash
  • No role system (Admin/Member) - all users have equal permissions

3.2 Calendar and Events

Event

  • id - Unique identifier
  • title - Event name
  • date - Scheduled date
  • start_time - Optional start time
  • end_time - Optional end time
  • description - Optional details
  • assigned_to - List of usernames (stored as JSON)

3.3 Shopping Management

ShoppingItem

  • id - Unique identifier
  • name - Item name

  • quantity - Item quantity (default: 1)

  • added_by - Username who added the item
  • purchased - Boolean purchase status

3.4 Expense Management

Expense

  • id - Unique identifier
  • title - Expense description
  • amount - Total cost (float)
  • payer - Username who paid
  • involved_people - List of usernames splitting the cost (stored as JSON)
  • No category or date fields
  • Equal split only (no custom split logic, possible future implementation)

Debt

  • debtor - Username owing money
  • creditor - Username receiving money
  • amount - Amount owed
  • Calculated dynamically, not persisted

Reimbursement

  • id - Unique identifier
  • from_person - Username making payment
  • to_person - Username receiving payment
  • amount - Payment amount
  • note - Optional note
  • No date field

4. Data Access Layer

The system uses a single Database class (backend/db/database.py) rather than separate
repositories:

  • Direct SQL operations through Database class methods
  • No repository pattern implementation

5. API Layer

REST endpoints are organized in routers (backend/routers/):

  • house.py - House settings and member management
  • calendar.py - Events operations
  • shopping.py - Shopping list management
  • expenses.py - Expense tracking and debt calculation

All business logic is contained within router handlers, with no separate service layer.

6. Component Diagram

The following structure illustrates the high-level components and their interactions:

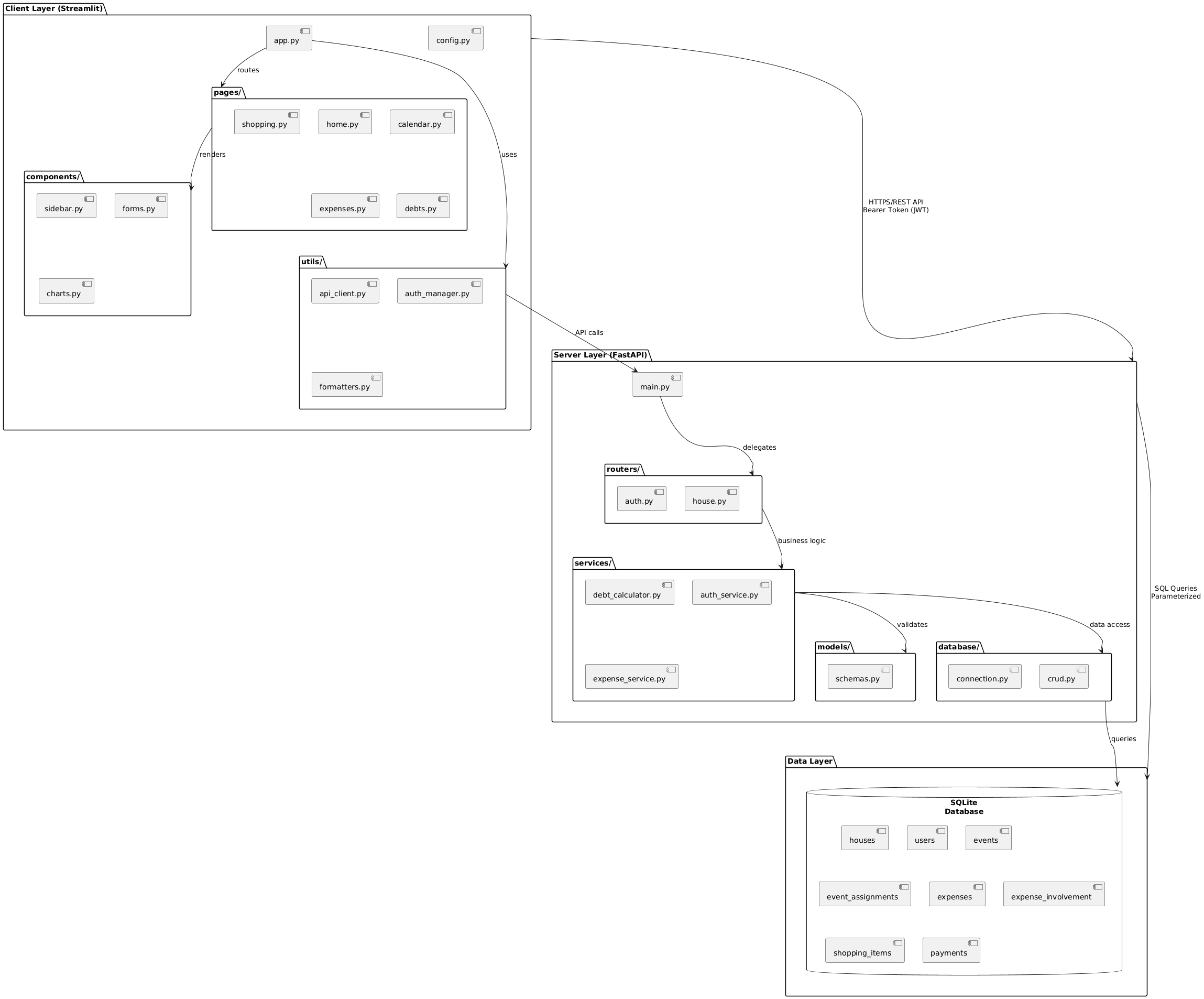

Component Diagram

6.1 Client (Streamlit App)

app.py: Main entry point handling authentication (login/register) and navigation. Displays
welcome page with links to all app modules (Settings, Calendar, Shopping List, Expenses).
Manages session state and authentication.

pages/: Individual feature modules implementing specific functionality:

  • 0_Settings.py - House configuration and user profile management
  • 1_Calendar.py - Event scheduling and calendar view for cleaning, tasks, and activities
  • 2_Shopping_List.py - Shared shopping list management
  • 3_Expenses.py - Bill splitting and expense tracking with debt calculation

utils.py: Helper functions for API communication with the FastAPI backend. Contains
methods for authentication (login_user, register_user), profile fetching and sidebar
rendering.

6.2 Server (FastAPI)

main.py: API entry point that creates the FastAPI application instance and aggregates all
domain-specific routers (auth, calendar, shopping, expenses, house). Provides root endpoint
with welcome message.

routers/: Domain-specific API handlers containing endpoint logic:

  • calendar.py - Events operations
  • shopping.py - Shopping list item management
  • expenses.py - Expense tracking, debt calculation, and reimbursement handling
  • house.py - House settings and configuration management

models.py: Pydantic model definitions for request/response validation and serialization.
Defines data structures for Event, ShoppingItem, Expense, Debt, Reimbursement, HouseSettings,
User, and authentication payloads.

6.3 Database

flatmates.db: SQLite relational database file storing all application data in tables: houses,
users, sessions, events, shopping_items, expenses, and reimbursements. Located in
backend/db/ directory.

database.py: Database abstraction layer providing the Database class. Manages SQLite
connections, schema creation/migration, and implements all CRUD operations. Handles
password hashing, session management, multi-house data isolation, and JSON serialization for
list fields.

7. Data Modelling

The domain model is designed to support the collaborative nature of household management.
The core entities and their relationships are defined below using Entity-Relationship (ER)
concepts.

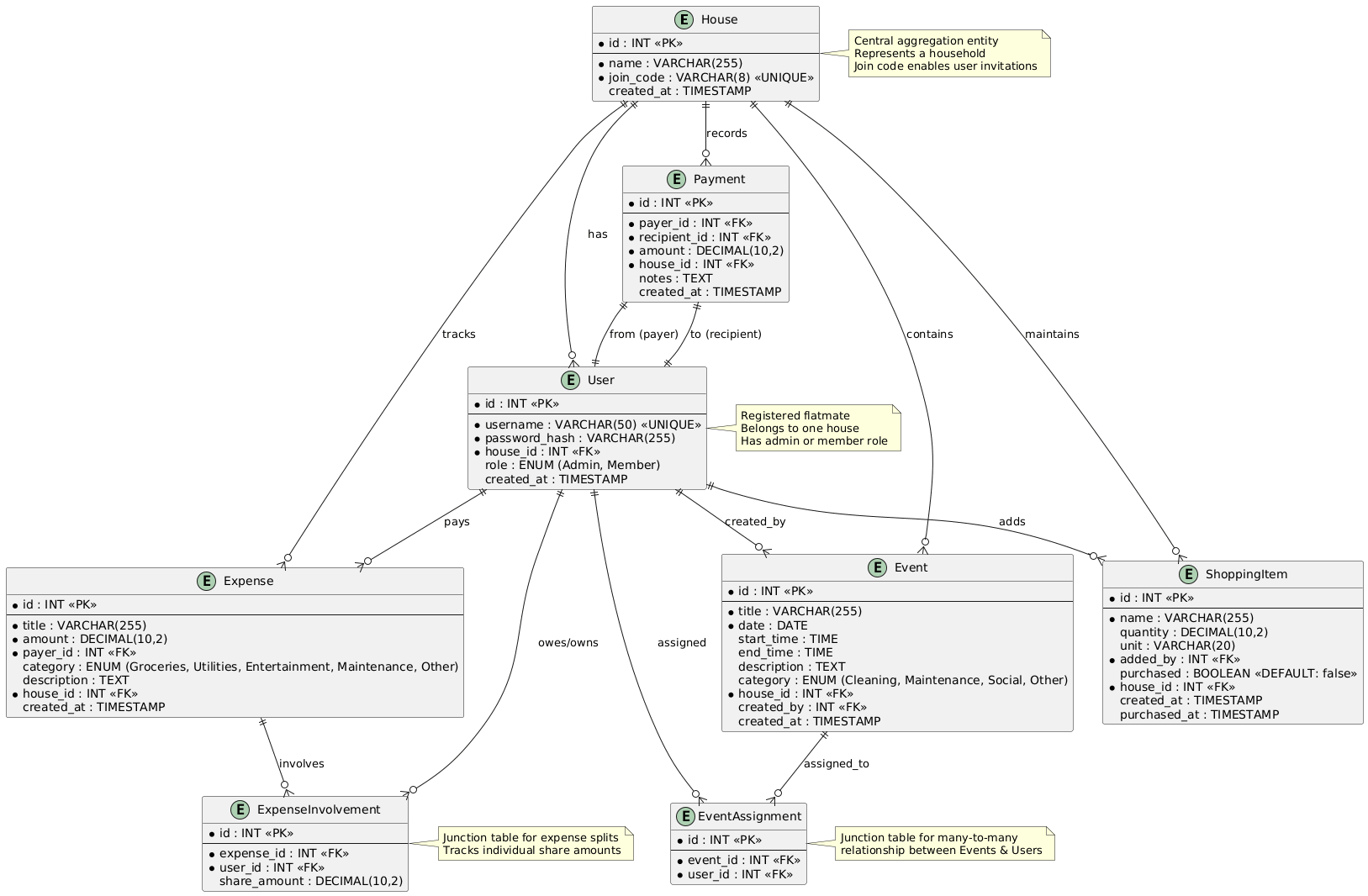

ER Concepts

7.1 Core Entities

House: The central aggregation point.

  • Attributes: id (PK), name, join_code (unique)
  • Relationships: One House has many Users, Events, Expenses, ShoppingItems, and
    Reimbursements

User: Represents a registered flatmate.

  • Attributes: id (PK), username (unique), password_hash, password_salt, house_id (FK)
  • Relationships: Belongs to one House

Event: Represents a calendar entry.

  • Attributes: id (PK), title, date, start_time, end_time, description,
    assigned_to (JSON list of usernames), house_id (FK)
  • Relationships: Belongs to one House

ShoppingItem: Represents an item to buy.

  • Attributes: id (PK), name, quantity, added_by (username string), purchased
    (Boolean/Integer 0 or 1), house_id (FK)
  • Relationships: Belongs to one House

Expense: Represents a shared cost.

  • Attributes: id (PK), title, amount, payer (username string), involved_people
    (JSON list of usernames), house_id (FK)
  • Relationships: Belongs to one House

Reimbursement: Represents direct payment between users.

  • Attributes: id (PK), from_person (username), to_person (username), amount, note,
    house_id (FK)
  • Relationships: Belongs to one House

7.2 Database Schema (SQLite)

The SQLite database uses the following tables:

  • houses: Stores house metadata (id, name, join_code)
  • users: Stores user credentials (id, username, password_hash, password_salt, house_id)
  • sessions: Manages authentication tokens (token, user_id, created_at)
  • events: Stores calendar events with assigned_to as JSON-serialized list
  • shopping_items: Stores shopping list items with purchase status
  • expenses: Stores financial records with involved_people as JSON-serialized list
  • reimbursements: Stores direct payments between users

8. Interaction Design

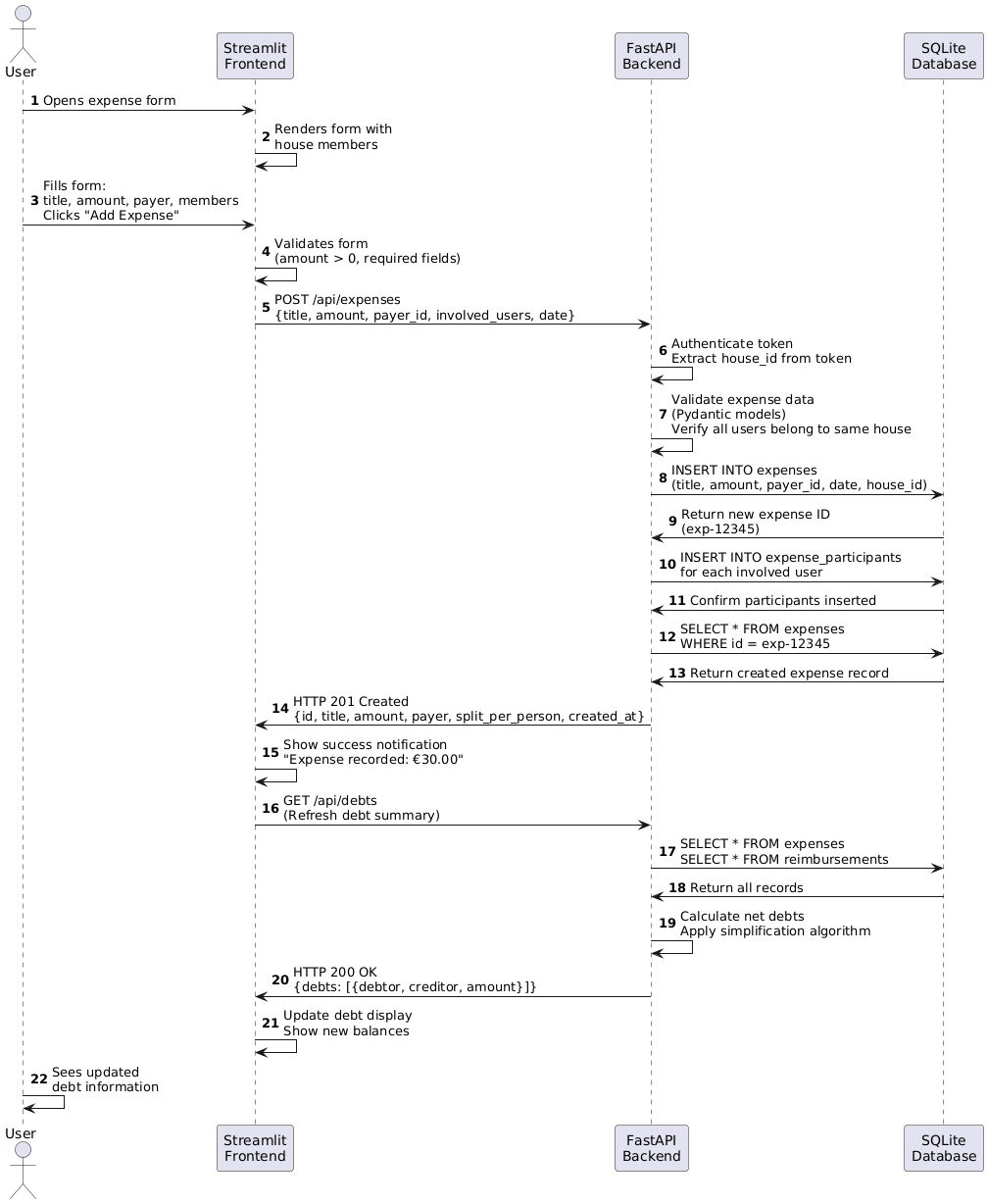

Sequence Diagram: Adding an Expense

Sequence Diagram Adding An Expense

This sequence illustrates the flow when a user adds a new shared expense:

  1. User fills the “Add Expense” form on the Streamlit Frontend.
  2. Frontend sends a POST /expenses/ request with the expense payload (title, amount,
    payer, split details) to the Backend.
  3. Backend (Router) validates the current user’s session token.
  4. Backend (DB Handler) executes an INSERT statement into the expenses table.
  5. Database confirms the insertion and returns the new ID.
  6. Backend returns the created Expense object to the Frontend.
  7. Frontend updates the UI to show the new expense and calls GET /expenses/debts to
    refresh the debt summary.

9. Behavior Design

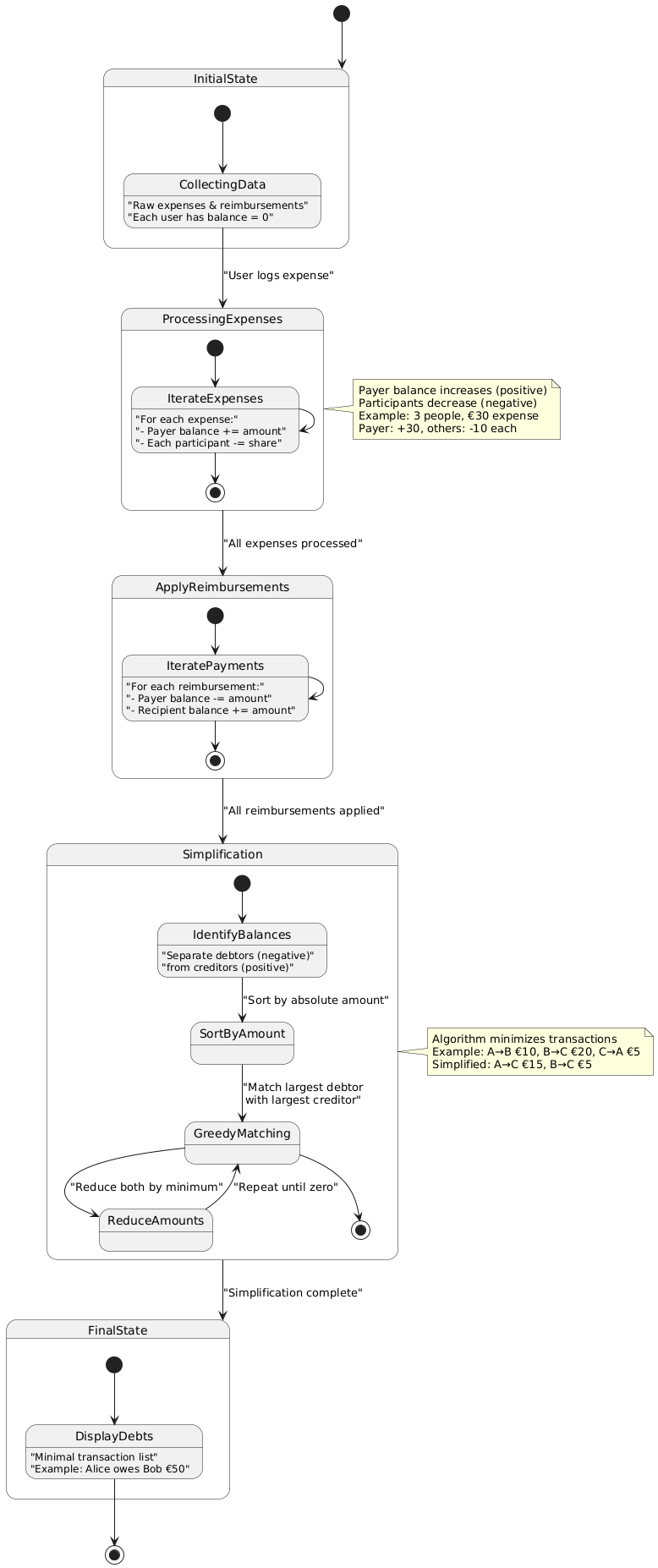

State Machine: Debt Settlement

Debt Settlements State Machine

The debt calculation logic follows a specific state transformation flow:

  1. Initial State: Raw lists of Expenses and Reimbursements from database
  2. Balance Calculation:
    • For each expense, the payer’s balance increases by the full amount
    • Each person in involved_people (potentially including the payer) has their
      balance decreased by amount / len(involved_people)
    • For each reimbursement, from_person’s balance increases and to_person’s
      balance decreases by the reimbursement amount
  3. Simplification Process:
    • Users are separated into debtors (negative balance < -0.01) and creditors
      (positive balance > 0.01)
    • Debtors are sorted in ascending order (most negative first)
    • Creditors are sorted in descending order (most positive first)
    • A greedy algorithm iteratively matches the largest debtor with the largest creditor
    • Each iteration settles the minimum of the debtor’s debt and creditor’s credit
    • Balances are updated and settled parties are removed from consideration
  4. Final State: A simplified list of debts representing “who owes whom” with minimal
    transactions

10. Security Design

  • Authentication: Token-based authentication using custom session tokens stored in the
    sessions table.
  • Password Storage: Passwords are hashed using SHA-256 with a unique
    randomly-generated salt (16-byte hexadecimal) per user before storage.
  • Data Isolation: All API endpoints require a valid Bearer token in the Authorization header.
    The backend enforces strict checks ensuring users can only access data belonging to
    their specific house_id.

Implementation Decisions

  • FastAPI: Chosen for high performance, automatic OpenAPI documentation (Swagger UI),
    and native support for asynchronous operations.
  • Streamlit: Selected for the frontend to enable rapid prototyping and development of
    data-driven dashboards without complex JavaScript frameworks.
  • SQLite: Used for data persistence due to its serverless nature, zero configuration, and
    suitability for the project’s scale and portability requirements.
  • Pydantic: Utilized for data validation and serialization, ensuring type safety across API
    boundaries.

This chapter explains the strategies and design decisions used to meet the requirements
identified in the analysis.

This site uses Just the Docs, a documentation theme for Jekyll.
